電子白板商務移動一體支架

產品名稱：電子白板商務移動一體支架
產品型號：產品型號：TC-BJ-001
產品品牌：TC-BJ-001

公司新網站鏈接地址：
http://www.szvlat.com

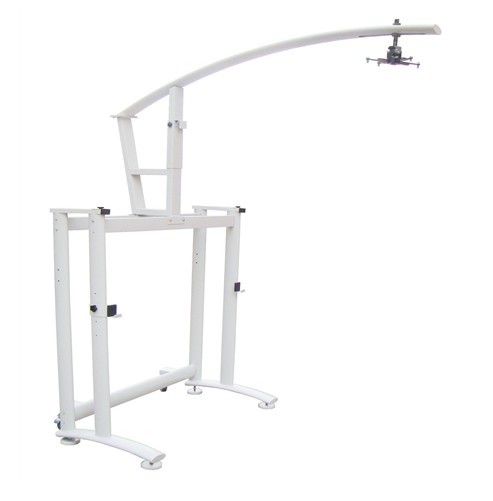

電子白板商務移動一體支架(Business Integrated Movable Electronic Whiteboard stand)：
1. 選用壁厚2mm以上的橢圓鋼無縫焊接而成，投影機吊架承重120斤無變形，保證了整個支架的牢固穩定。
(More than 2mm thick elliptical and seamless welded. The projector hanger can bear 60kg without deformation to ensure stability.)
2. 流體的造型，合理的力學結構使投影機重心下沉后靠，避免了同類產品在書寫過程中因投影機抖動而造成影像晃動影響使用。
(Fluidal design and reasonable mechanical structure make the gravity center of projector behind and sink to avoid projector wobble and image shaking when users writing on the boards.)
3. 可滿足72寸-108寸白板任意安裝。
(Acceptable whiteboard Size: 72’’-108’’)
4. 白板上下高度可調，滿足不同場合及人士需要。
(The distance between whiteboard and floor is adjustable to meet different occasions and requirements.)
5. 投影機懸臂開槽設計，使得投影機距離白板最近1000MM、最遠1300MM任意可調。
(Slotted design on the projector cantilever makes the distance between the projector and whiteboard adjustable from 1000MM to 1300MM)
6. 采用簡約實用萬能爪盤固定投影機，可前后左右上下六向平移調節投影機位置和重心，可前后左右平面旋轉和三維旋轉調整畫面反正，適用于所有投影機。
(Fixed the projector by the simple and practical omnipotent claw hanger which can adjust the projector position and center of gravity on six directions(Forward, backward, left, right, down, upward). And applicable to all projectors.) -Details please refer to the omnipotent claw hanger specification.
7. 底座安裝水平調節配重底座，配備帶剎車的萬向滾輪，既保證了移動的方便性又使得使用時能夠平穩和牢固。
(Equipped with the universal brake casters and installed the heavy pedestal which can adjust on horizontal direction make the stand move convenient and ensured the stand stability.)
8. 暗藏式走線使得整個產品美觀、大方。
(Hided lines make the stand beautiful and elegant.)
9. 可選購增設電腦托盤和數碼展臺托盤。可根據用戶需求進行訂制其他造型結構的支架。
(Optional Accessories: Computer Tray and Visualizer Tray. Also accept the ODM orders.)

產品材質 (Material)	橢圓鋼 (Elliptical steel)
寬度 (W)	1200MM
高度 (H)	1050-1500MM
最大承載重量 (Max allowable Weight)	50KG
適用白板尺寸 (Acceptable whiteboard size)	72＂-108＂
離地距離 (Distance to floor)	720-960MM
投影機離板面距離 (Distance of the projector away from the whiteboard )	1000-1300MM
投影機適用范圍 (Applicable projector)	各品牌各型號短焦投影機 (All brands and types of short-throw projectors)
包裝尺寸 (Packing Size)	A:1652822131MM(±5) B:2032752161MM(±5)
凈重 (N.W.)	A:24(±2)KG B:37(±2)KG
毛重 (G.W.)	A:28(±2)KG B:31(±2)KG
